Floor-Mounted Jib Crane 4M 250 FMJC-4
Artikelnummer: FMJC-4General
The Floor-Mounted Jib Crane is a robust, free-standing lifting solution designed for various industrial applications. Its floor-mounted design provides exceptional stability, making it perfect for areas with impractical overhead cranes. This crane offers a full 270° rotation, providing maximum floor coverage, and is ideal for use with hoists or vacuum lifters.
Hoist
The Aardwolf Light Load Cranes equip a powerful Hoist with a load limit of 300 kg /660lb (Single cable) and 600 kg / 1322 lb ( Double cable). Designed for ground placement, it simplifies setup and removal, making it an ideal solution for construction sites and cargo handling.
Equipped with a dual-hook system, it delivers efficient lifting speeds of 10m/min (single) and 5m/min (double), with a lifting height of up to 12m. Built for durability and reliability, the Kensen PA 600A ensures safe and effective operation in various environments.
Features
- Sealed roller-bearing pivot
- Highly durable design
- 270o rotation
- Over-braced design helps the arm effectively withstand forces, ensuring enhanced durability.
- Easy-moving hoist trolley
- Rubber end stop

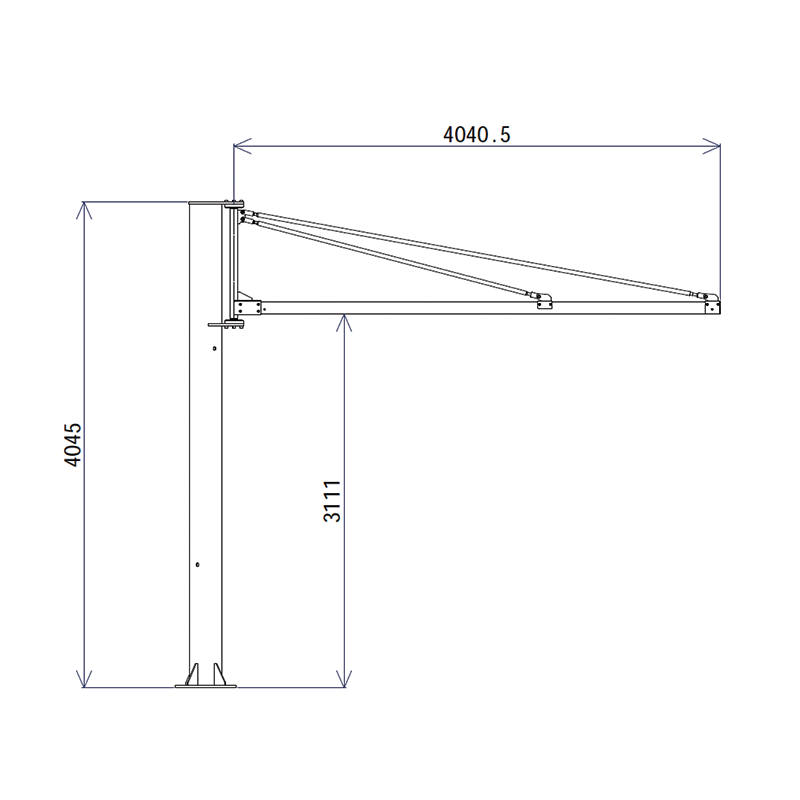

Specifications
|
|
Metric |
Imperial |
|
Jib length |
4000 mm |
157.5" |
|
Arm height |
3150 mm |
124" |
|
Arm length |
4000 mm |
157.5" |
|
Crane height |
4000 mm |
157.5" |
|
Working load limit |
200 kgs |
440.9 lbs |
